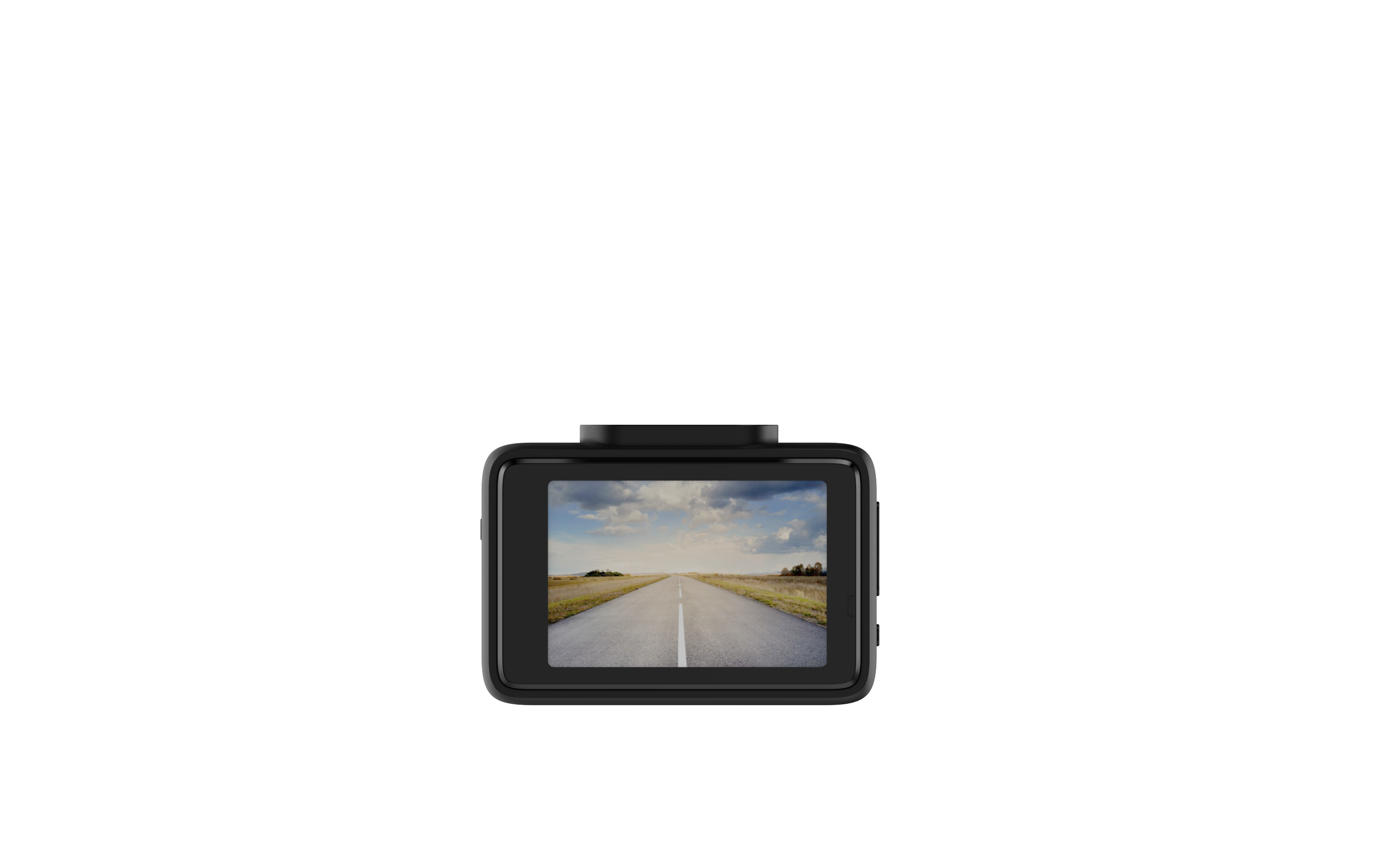

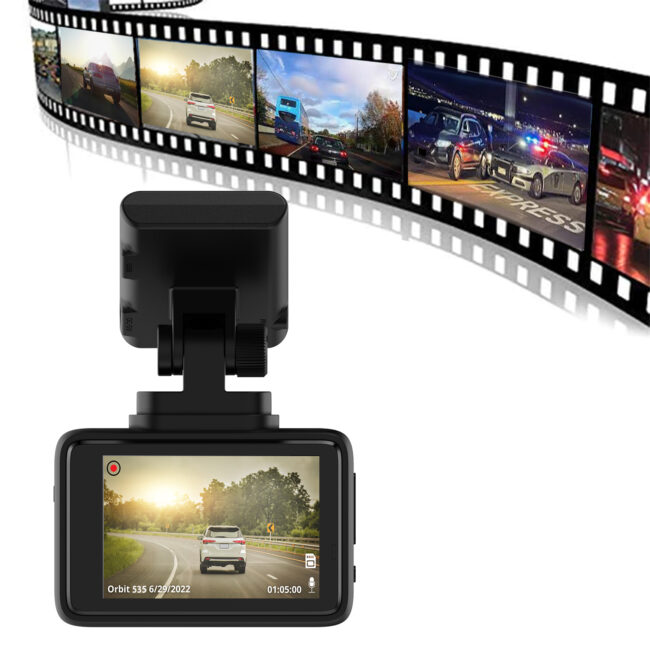

Record the road ahead in true 4K with the Orbit 535, offering you sharp and clear video so you won’t miss those license plates and signs. Equipped with the Sony Starvis sensor, rendering a well-lit video at night. Easily view, download, and share your footage via dash cam to your smartphone through Wi-Fi and mobile app connection. Easily remove and clip in your dash cam with the magnetic adhesive mount. Supporting up to 128GB, storing hours of footage. Our package includes a free 32GB microSD card so you can start installation and record immediately. Capture your everyday commute and provide evidence when you need it the most.
 |
||
 TRUE 4K UHD VIDEOS
Capture sharp and clear video in true 4K UHD, recording license plates and signs on the road. Be able to provide clear evidence of what happened on the road. |
 SONY STARVIS SENSOR
Empowered with the Sony Starvis sensor, rendering a well-lit and high-quality video in low light situations when night falls. |
 WI-FI FOR INSTANT FILE SHARING
Connect your dash cam to the mobile App on your smartphone to conveniently view, download, and share your footage instantly. |
 FATIGUE DRIVER ALERT
Drivers can set a time for an alert reminder to take a break from driving if they have been driving for a long period of time. |
 MAGNETIC ADHESIVE MOUNT
Convenient and easy to remove the dash cam with the magnetic mount. Simply take out and clip back into place in an instant. No need to hassle with taking off the entire mount to remove the dash cam. |
 BUILT-IN G-SENSOR
A G-sensor is built into the dash cam, so if it senses drastic breaking or a collision, it will automatically lock onto the emergency files. This ensures that these files will not be loop recorded once they have been locked. |
SUPPORTS UP TO 128GBSupporting up to 128GB, you won’t need to worry about a limited amount of space or your footage being constantly being loop recorded over. An 32GB microSD card is included in your package, so you’ll be good to immediately install and start recording your drives. |
LIFETIME OF FIRMWARE UPDATESKeep your dash cam up to date with the latest firmware and updates. All you need to do is check our website regularly for new available updates found in the support tab. |
|
| Model | Orbit 500 | Orbit 510 | Orbit 530 | Orbit 535 |
|---|---|---|---|---|
| Description | 1080p Dashcam with 8GB SD Card & OBD2 Power Cable | 1080p Dashcam with GPS & 16GB SD Card | 1296p Sony STARVIS Dashcam with Wi-Fi & 16GB SD Card | 4K Wi-Fi Sony STARVIS Dashcam with Wi-Fi & 32GB SD Card |
| Photos |  |  |  |  |
| LCD Display | 2.0" TFT | 2.0" TFT | 2.0" TFT | 2.35" TFT |
| Interface | mini-USB | micro-USB | micro-USB | mini-USB |
| Image Sensor | CMOS | CMOS | Sony STARVIS | Sony STARVIS |
| Resolution | 1080FHD (1920 x 1080) 1080p (1440 x 1080) 720p (1280 x 720) | 1080p (1920 x 1080) 720p (1280 x 720) | 1296p (1728 x 1296) 1080p (1920 x 1080) 720p (1280 x 720) | 4K (3840 x 2160) |
| Video Format | .avi | .mov | .mov | |
| Frame Rate | 30 FPS | 30 FPS | 30 FPS | 30 FPS |
| Field of View | 120° | 150° | 150° | 140° |
| Wi-Fi App Connectivity | Yes (GoPlus Cam) | Yes (GEKO DVR) | Yes (GEKO DVR) | Yes (RoadCam) |
| GPS | No | Yes | No | Yes |
| Parking Mode | Yes | Yes | Yes | Yes |
| Motion Detection | Yes | Yes | Yes | Yes |
| Embedded Battery | 110mAh Lithium | 320mAh Lithium | Super Capacitor | Super Capacitor |
| SD Card | 8GB (max 32GB) | 16GB (max 64GB) | 16GB (max 64GB) | 32GB (max 128GB) |
| Driver Assist Features | N/A | N/A | N/A | N/A |
| Mount Type | 3M Adhesive | Suction Cup or 3M Adhesive | Suction Cup or 3M Adhesive | 3M Adhesive |
| Box Dimensions (in) | 5.3 x 4.9 x 2.95 | 5.12 x 4.8 x 2.95 | 5.12 x 4.8 x 2.95 | 5.1 x 4.8 x 5.1 |
| Box Weight (lbs) | 1 | 1 | 1 | 1 |
Specifications
| Resolution | 4K UHD |
| Image Sensor | Sony STARVIS |
| Display | 2.35″ LCD |
| FOV | 140° Wide Angle Lens |
| Storage Memory | 128GB (32GB MicroSD Included) |
| Mount | Magnetic Adhesive Mount |
| Loop Recording | Yes |
| Unit Dimension | 2.81″ x 1.98″ x 1.33″ in |
| Unit Weight | 0.25lbs |
| Power Supply | Super Capacitor |
| Operating Temperature | -20°F~70°F / -28°C~21° |
| Wi-Fi iOS/Google App | RoadCam App |
Shipping Information
| Item | Product Description | UPC | Package Dim. | Package Weight | Master Carton Qty |
| Orbit 535 | 4K UHD Wi-Fi Dash Cam | 850006713714 | 5.1″ x 4.8″ x 5.1″ Inch | 1 lbs | 20 |
